8/8.5kw Industrial Generator

Product details

Description

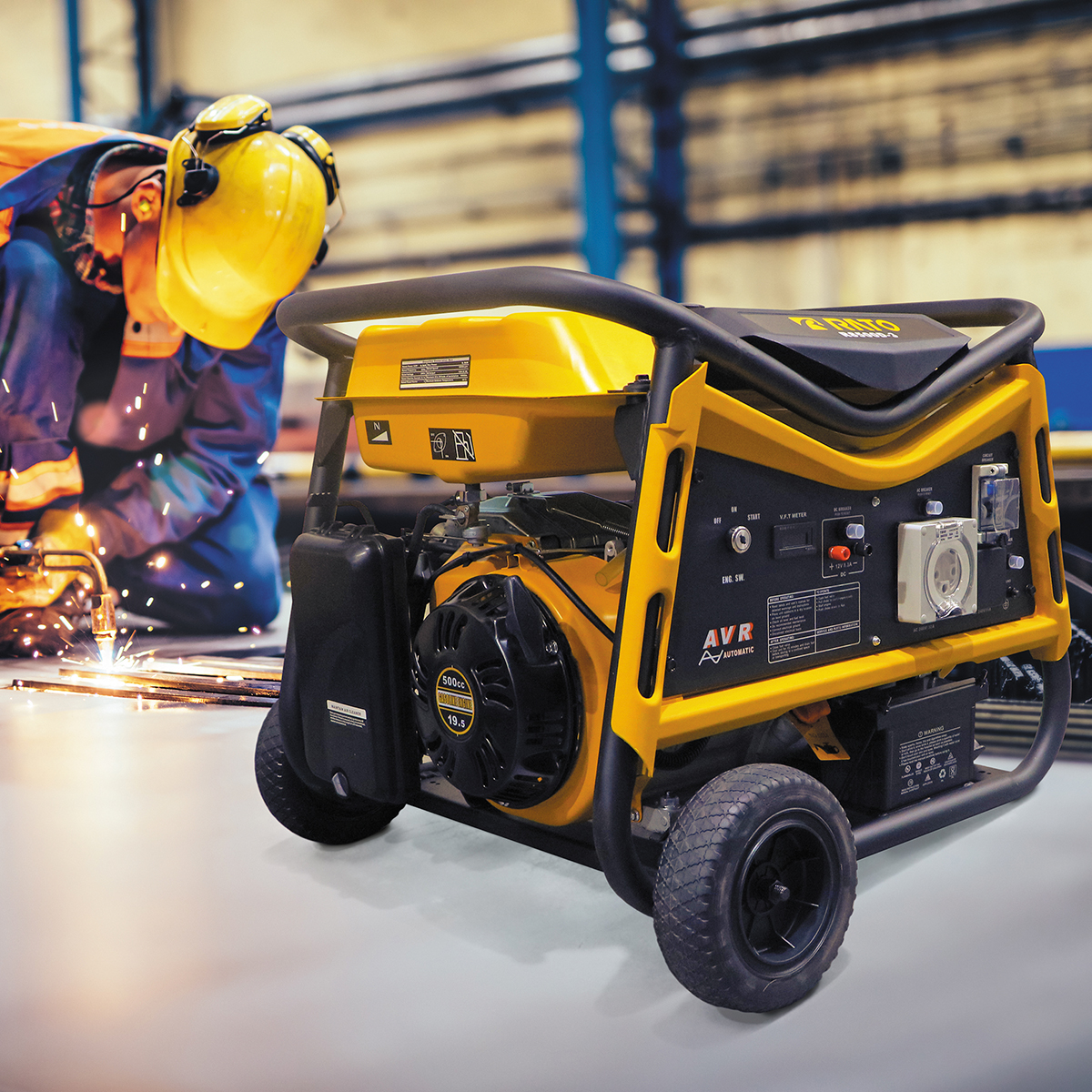

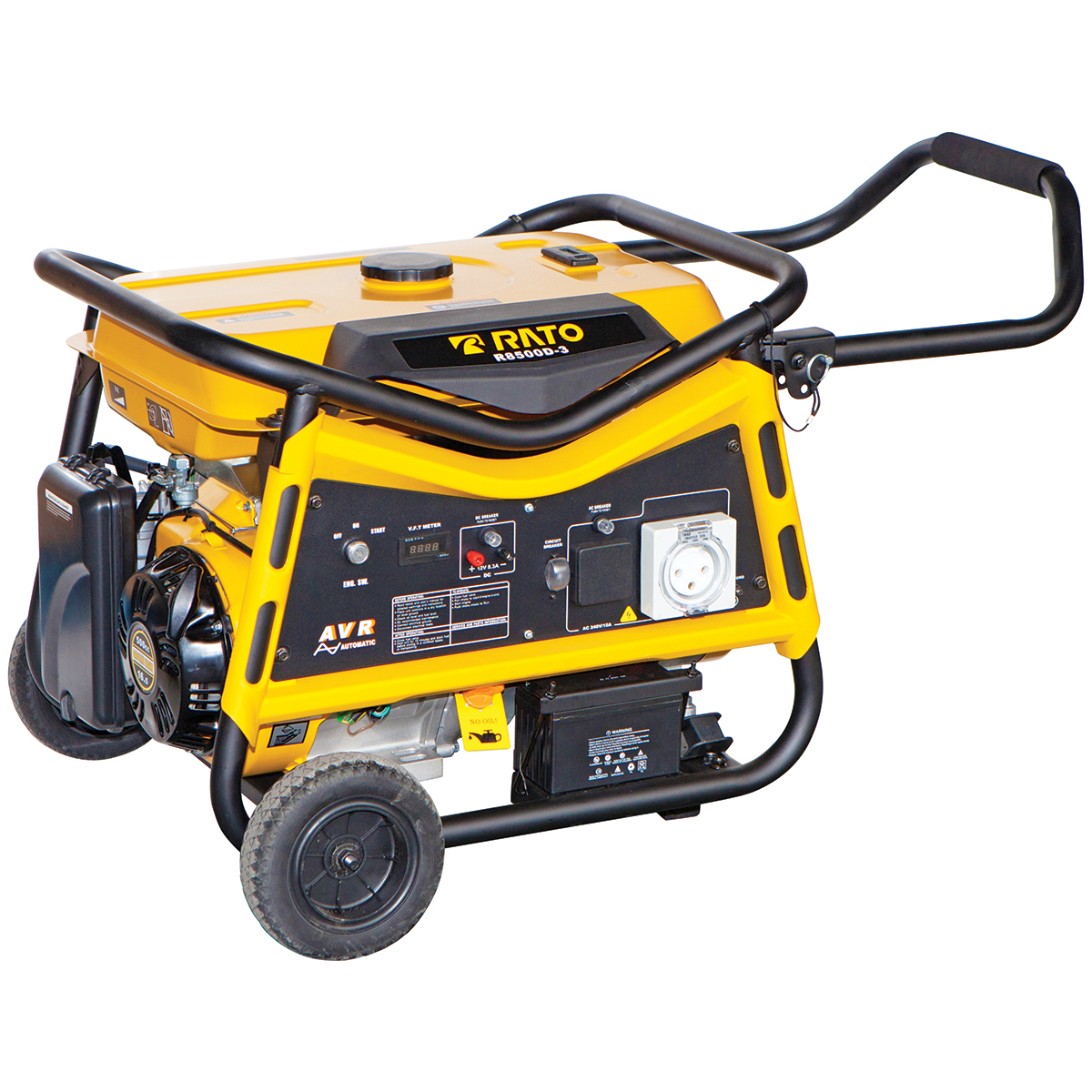

The RATO R8500D-3 open frame generator is the perfect option for portable power.
Features: Strong stable output, reliable long-time performance; Low fuel consumption, low carbon exhaustion; Convenient recoil and electric start; 3-in-1 digital meter; Wheels and handle for easy movement; Includes RCD swtich and 32 amp IP66 plug.
Covered by our 2 year/500 hour domestic warranty.

Measurements

Engine model: R500V Engine type: Air cooled, 4 stroke, OHV, single cylinder Starting system: Recoil / Electric start with battery Displacement: 499.6cc Bore x stroke: 94 x 72mm Compression ratio: 8.7:1 Rated frequency: 50Hz Rated voltage: 240v Rated power: 8.0kw Max. power: 8.5kw DC output: 12v / 8.3A Fuel tank capacity: 25 litres Full load continuous running time: 5 hours 1/2 load continuous running time: 7 hours Noise (7m): 80db Dimensions (L x W x H mm) 683 x 540 x 542 Net weight: 102kg

Download Resource 1

R8500D-3 RRP.pdf

Download Resource 2

R8500D3 breakdown.pdf
