2″ High Pressure Pump – Twin Impeller

Product details

Description

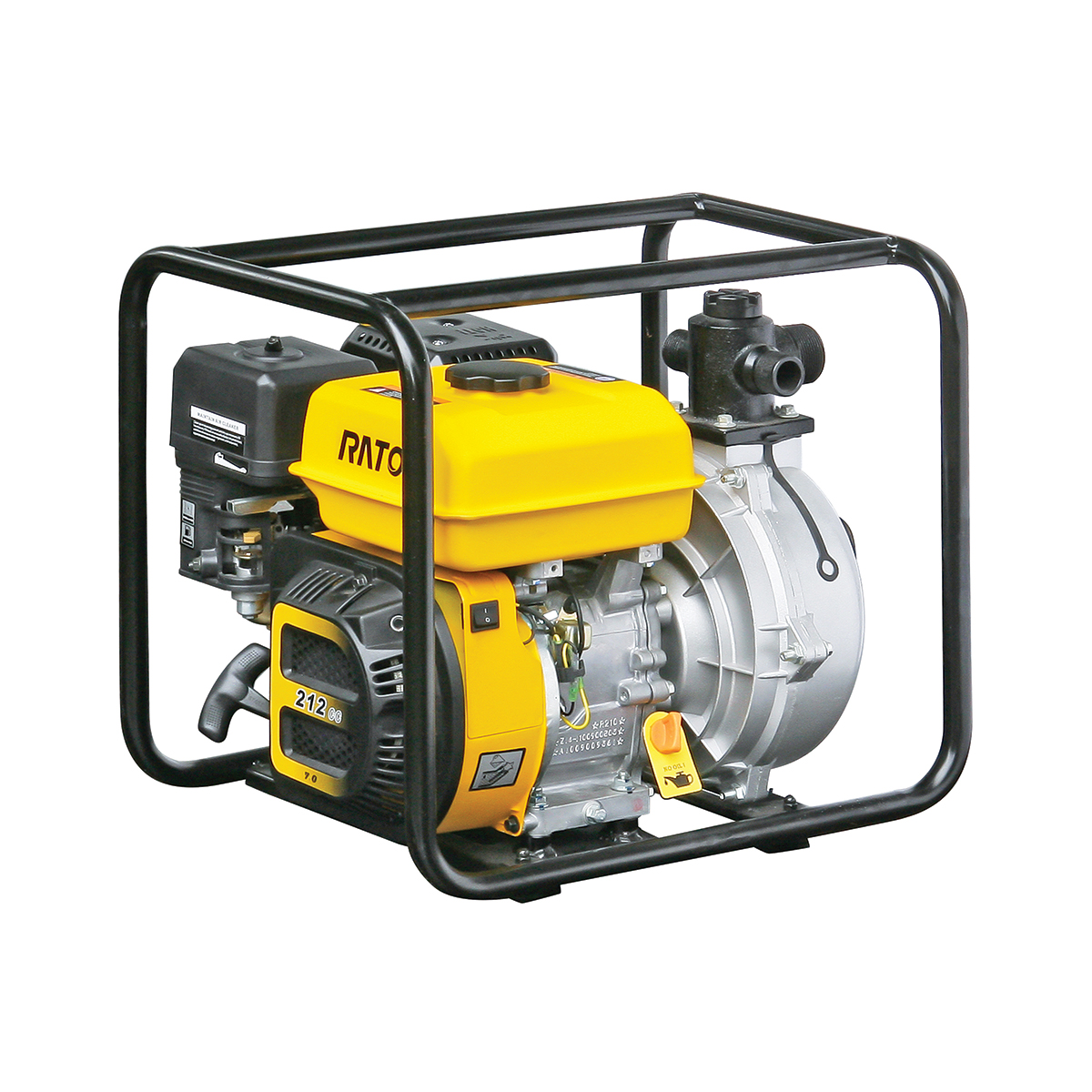

The RATO RT50YB80-3.8Q 7hp high pressure pump is ideal for irrigation, fire security, Noh pools, orchard water supply, house cleaning and long distance and high pressure water supply. Has a rugged full frame for protection.
Features: Transistorised ignition for reliable starting; Cast iron cylinder liner ensures consistent performance and durability; Rugged full frame protection; Powerful 7hp RATO engine.
Covered by our 2 year/500 hour domestic warranty.

Measurements

Engine model: R210 / 7hp Engine type: Single cylinder 4 stroke OHV Starting system: Recoil start Bore x stroke: 70 x 55mm Displacement: 212ml Compression ratio: 9:1 Net power: 4.4kw / 3600rpm Fuel consumption: ≤395 (g/kw-h) Net torque: 12N.m / 2500rpm Pump set; 2" high lift pump Suction port diameter: 50mm (2") Discharge port diameter: 1.5” / 1” / 1” Suction head lift: 7m Total head lift: 80m Discharge capacity: 16m3/h / 266 litres per minute Dimensions (L x W x H mm) 500 x 395 x 446 Net weight: 29.5kg

Download Resource 1

RT50YB80 pump RRP.pdf

Download Resource 2

RT50YB80 breakdown.pdf
