2″ High Pressure Pump – Single Impeller

Product details

Description

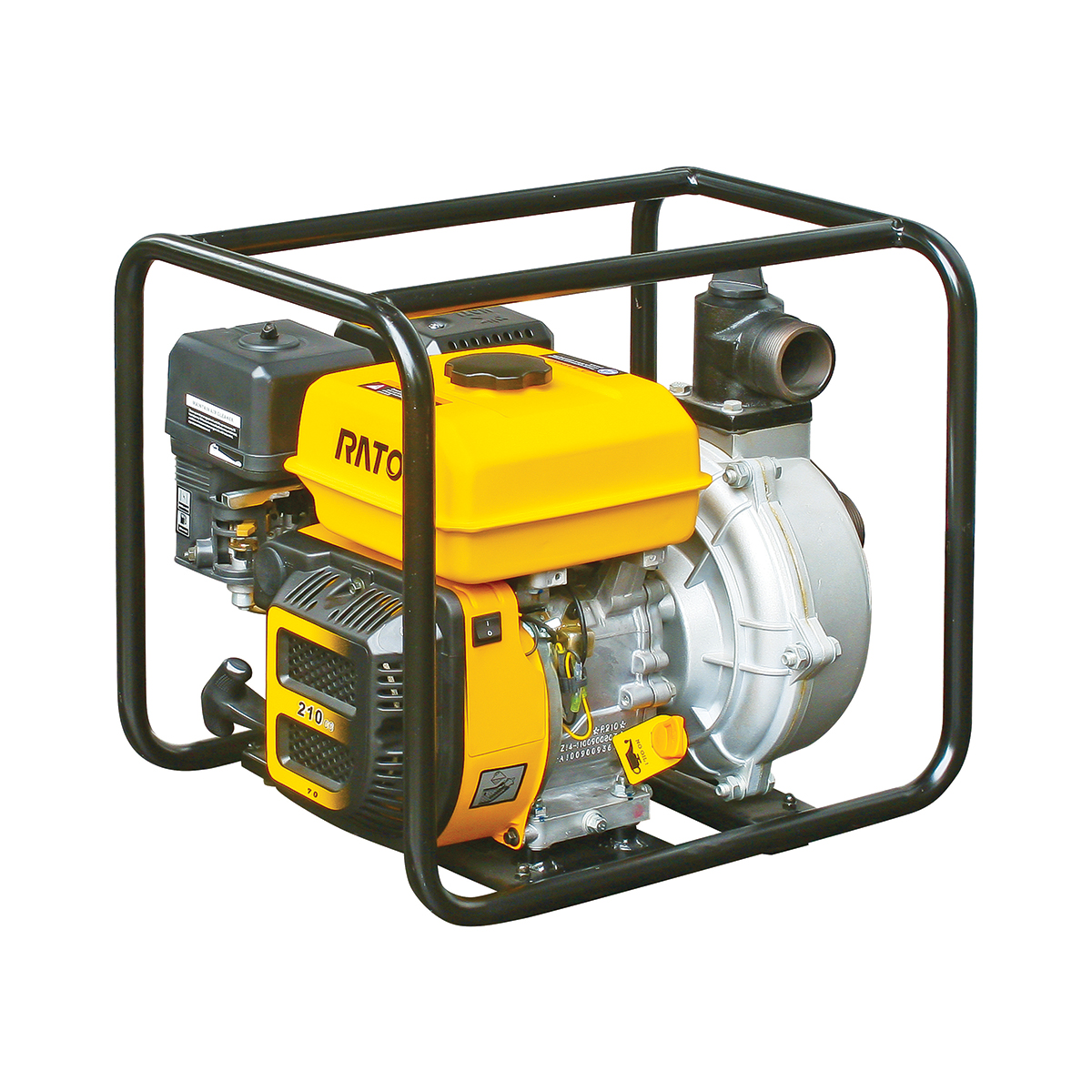

The RATO RT50YB50-3.8Q 7hp high pressure pump is perfect for all your pumping needs. It is ideal for irrigation, orchard water supplies, heavy duty cleaning, fire fighting and long distance, high pressure water supply. It features a rugged full frame for protection.

Covered by our 2 year/500 hour domestic warranty.

Measurements

Engine model: R210 / 7hp Engine type: Single cylinder 4 stroke OHV Starting system: Recoil start Bore x stroke: 70 x 55mm Displacement: 212ml Compression ratio: 9:1 Net power: 4.4kw / 3600rpm Fuel consumption: ≤395 (g/kw-h) Net torque: 12N.m / 2500rpm Pump set: 2" high lift pump Suction port diameter: 50mm (2") Discharge port diameter: 1 x 1.5” / 2 x 1” Suction head lift: 7m Total head lift: 50m Discharge capacity: 30m3/h / 500 litres per minute Dimensions (L x W x H mm) 500 x 395 x 446 Net weight: 29.5kg

Download Resource 1

RT50YB50 pump RRP.pdf

Download Resource 2

RT50YB50 breakdown.pdf
